Things you will need to wirelessly connect your Field Gauge to FieldLab Desktop:

  1. A Field Gauge with optional Zigbee (W1) Radio installed.
  2. Wireless dongle that was provided with your Field Gauge inserted into a USB port on your computer.
  3. A computer with Ralston FieldLab Desktop (available for free) installed. See Install FieldLab Desktop on your computer for more information.
  4. Your Field Gauge must be linked to FieldLab Desktop. See Link your Field Gauge to FieldLab Desktop for more information.
  5. FieldLab Desktop and your Field Gauge must be set to the same channel so that they can connect wirelessly. FieldLab Desktop and Field Gauges are both preset to the factory default; channel 26.
1

Open FieldLab Desktop on your computer.

2

Plug the wireless dongle into the USB port on your computer.


Once your computer recognizes that a new USB device has been connected, you should see a wireless icon in the bottom left corner of FieldLab Desktop.

Devices screen in FieldLab Desktop showing the wireless-enabled icon.
Icon showing that Wireless USB Dongle is connected to the computer; and that the wireless channel on FieldLab Desktop is set to channel 26.


3

Power On your Field Gauge.

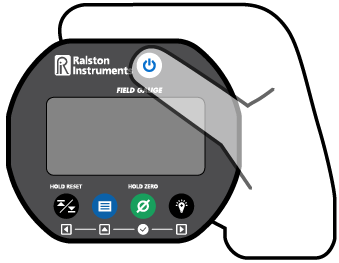

Press and hold the Power Button for five seconds.

4

Open the MENU on your Field Gauge.

Press and hold the Menu Button until you see the word MENU on the screen.

5

Tap the Right Arrow Button (Backlight Button) to scroll to RADIO

Tap the right arrow button (Backlight Button) to scroll through the menu list until the word RADIO appears.

6

Tap the Check Button (Zero Button) to enter the RADIO sub-menu.

7

Tap the Check Button (Zero Button) to select RF ON

This will turn on the wireless radio in your Field Gauge.

8

Wait for the Gauge to establish a connection (about 30-40 seconds).

The Link Icon in the upper right of the screen will flash, indicating that the wireless radio is enabled and the Field Gauge is looking for another device to connect to.

9

Confirm connection between Field Gauge and your computer.

Once the Link Icon in the upper right of the Field Gauge screen is solid, it means a connection has been established with another device.

To confirm that your Field Gauge has connected to your computer, look at the Devices screen in FieldLab Desktop on your computer. The icon for your Field Gauge will show a green screen when it is connected.

Field Gauge Link Icon Solid
Link icon solid (not blinking) once the Field Gauge connects with another device.

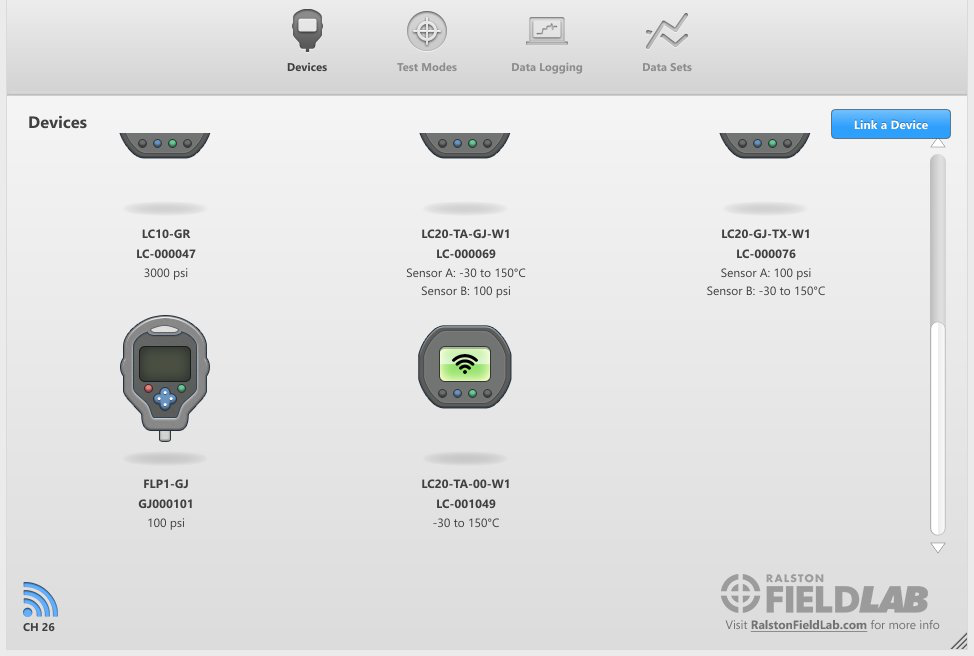

Devices Screen in FieldLab Desktop, with a Field Gauge connected wirelessly.
The Field Gauge icon on the Devices screen in FieldLab Desktop will show a green screen with a wireless symbol once a wireless connection is established.
