Things you will need:

  • A PC running Windows.
  • FieldLab Desktop software version 1.24.7.0 or later installed on your PC. Download the latest version for free.
  • A Ralston Instruments Field Gauge.
  • For wired links: Provided USB cord.
  • For wireless links: A wireless enabled Field Gauge and wireless USB dongle (included with purchase of all Ralston wireless enabled devices).

Before you begin, you will need to:

Link your Field Gauge to FieldLab Desktop

1

Open FieldLab Desktop on your computer

2

Power on the Field Gauge

3

Connect the Field Gauge to your computer with provided USB cable, or wirelessly.

Learn how: Make a wireless connection between your wireless enabled Field Gauge and FieldLab Desktop.

4

Select Data Logging from the main menu.

Once you have confirmed a connection between Field Gauge and FieldLab Desktop, select Data Logging from the main menu at the top of the screen.


5

Select one or more connected gauges.


In this example we are selecting one LC20 Temperature Gauge, and one LC20 Dual Sensor Field Gauge. We are selecting both the temperature and the pressure sensors for the LC20 dual sensor Field Gauge.

Based on our selections, our log session will save two temperatures, and one pressure.

6

Add to log session

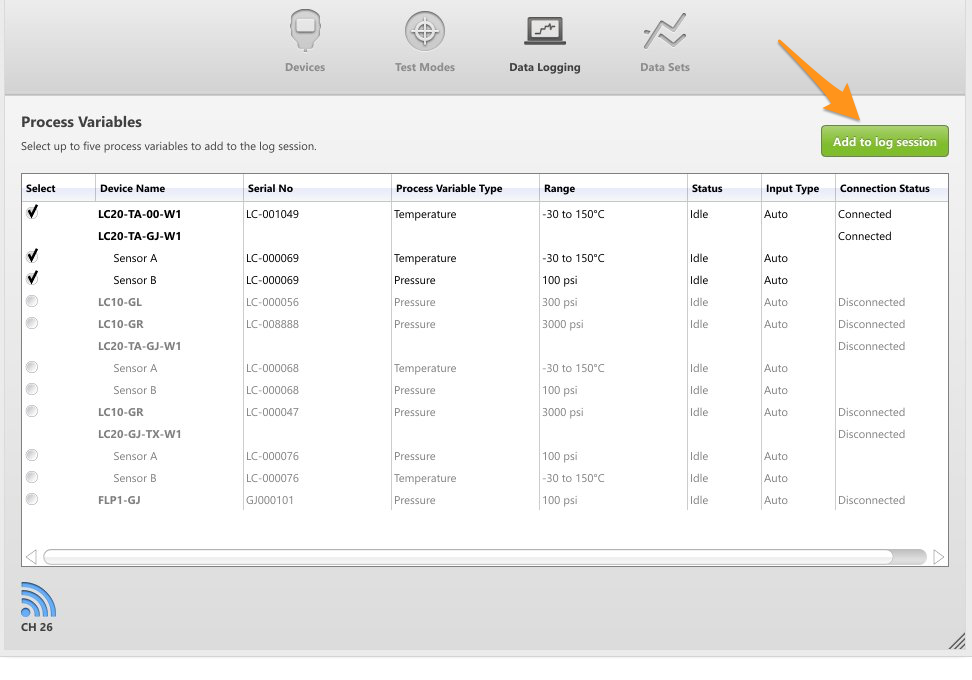

Once you have selected all the process variables you want to use in the log session, select Add to log session.

Add selected process variables to log session

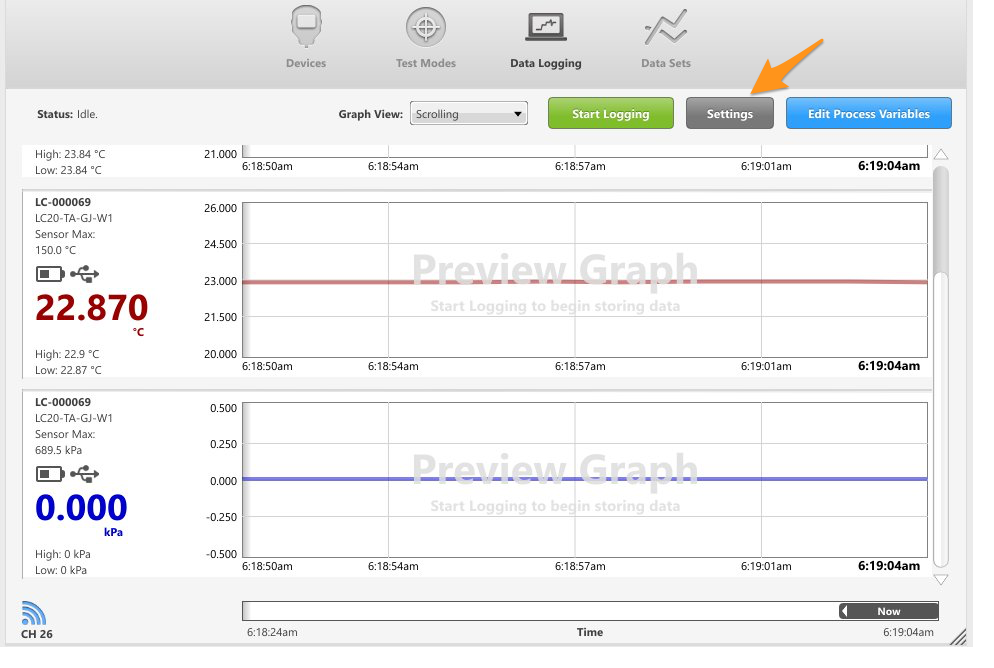

Optional: Adjust the settings before you start logging

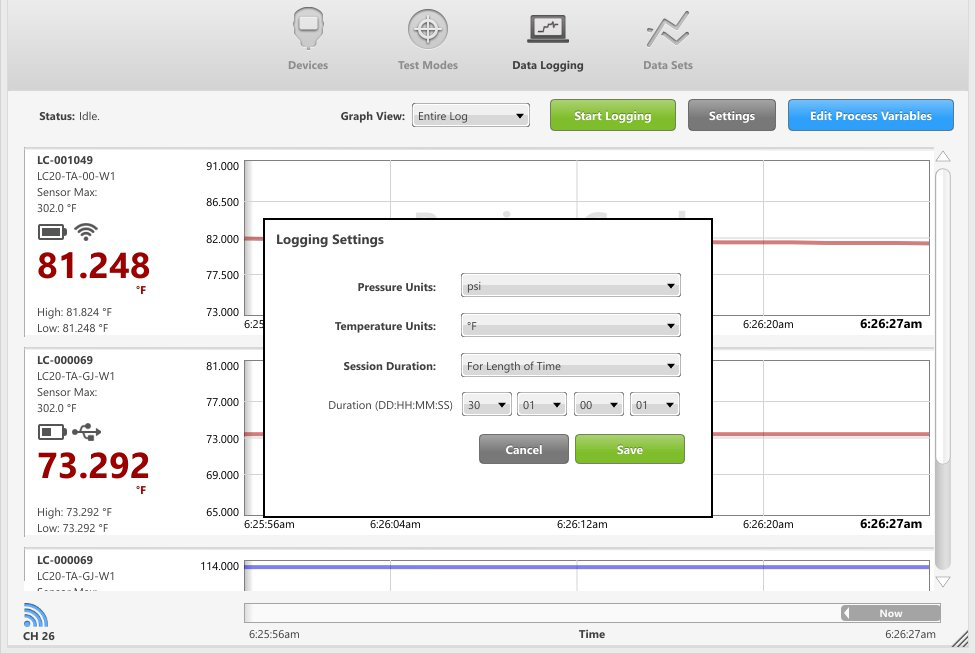

Before you begin your logging session you can adjust the settings for:

  • Pressure Units - Measure pressure in any universally accepted engineering unit.
  • Temperature Units - Measure temperature in °F, °C, °R, or K.
  • Session Duration - You can set your log session to automatically stop after a specified length of time, until a total number of points are logged, or use the default; manual stop.


Optional: Change the Graph View

Note: You can change the graph view any time during the logging session.

Entire Log

Setting the Graph View selection to "Entire Log" will show all the graph data from the time you started logging.

Scrolling

When you select "Scrolling", only the most recent graph data will be shown, and older graph data will scroll off the left side of the screen as time progresses.

You can use the slider tool at the bottom of the screen to scroll back and view older graph data.



7

Select Start Logging

Once you've confirmed you have the desired settings for the logging session, select Start Logging to begin saving the data from your Field Gauge(s) to your computer.

8

Stop Logging

If you have the Setting for your log session set to Manual Stop, select the Stop Logging button when your session is finished.

If you specified automated stop rules in the settings before beginning your log session, you will not need to select the Stop Logging button and FieldLab Desktop will stop automatically once the stop criteria you specified is met.

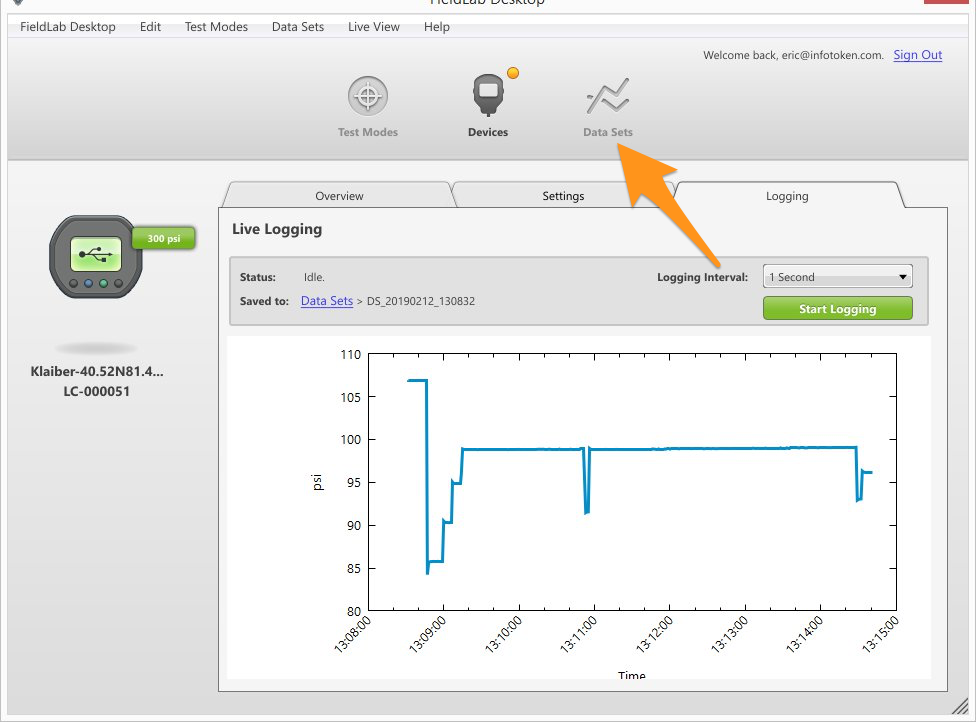

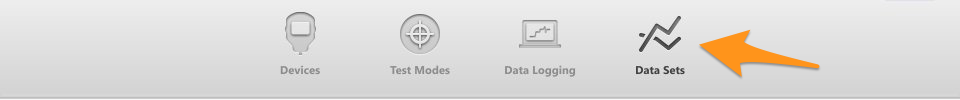

All data from your log sessions is saved to Data Sets. You can go to the Data Sets section of FieldLab Desktop to view and export the data from all of your log sessions.

Learn How To:

Export Data Sets from FieldLab Desktop
