This article applies to Ralston Field Gauge LC10, all models.

Things you will need:

  • A PC running Windows.
  • Fieldlab Desktop software version 1.24 or later installed on your PC. Download the latest version for free.
  • A Ralston Instruments Field Gauge.
  • USB Cord, provided with your Field Gauge.
1

Download and install the latest version of FieldLab Desktop.

You will need FieldLab Desktop version 1.24 or later. Download the latest free version, here.

2

Open the FieldLab Desktop app on your computer.

3

Connect the Field Gauge to your computer with the provided USB Cable.

4

Power on the Field Gauge by holding down the Power button for three seconds.

5

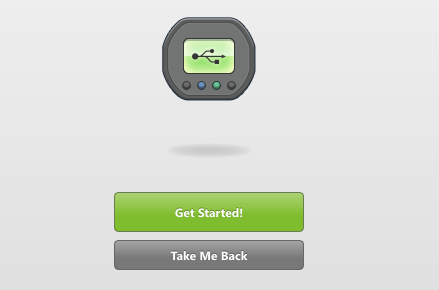

FieldLab Desktop app will present a “Found a new gauge” screen. Select the “Get Started!” button.

6

FieldLab Desktop will ask you if you’d like to link this Field Gauge. Select the button “Link to this PC”.

7

Confirm that you want to link by selecting the button “Link to this PC”.

8

Once the linking process is complete, select the button “Done”.

9

You can now manage your Field Gauge settings, log data to your computer, and update firmware with FieldLab Desktop.
