This article applies to:

  • Ralston Field Gauge, all models.
  • Ralston FieldLab, all models.

What you will need:

  • A PC running Windows.
  • FieldLab Desktop software version 1.24 or later installed on your PC. Download the latest version for free.
  • A Ralston Instruments Field Gauge.
  • USB Cord, provided with your Field Gauge.
1

Power on a Field Gauge and connect it to a computer running FieldLab Desktop with the provided USB cord.

2

In FieldLab Desktop, select Live View > Show Live View

At the top of the FieldLab Desktop window, select Live View. A submenu will appear. Select "Show Live View" from the submenu.

3

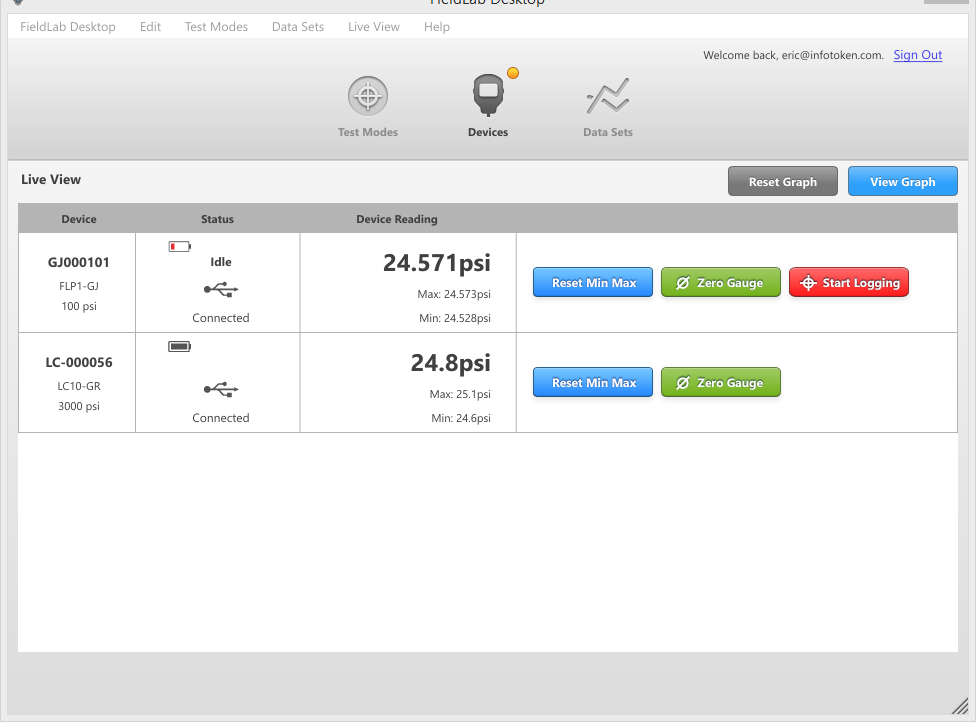

View pressure readings from all connected Field Gauges

4

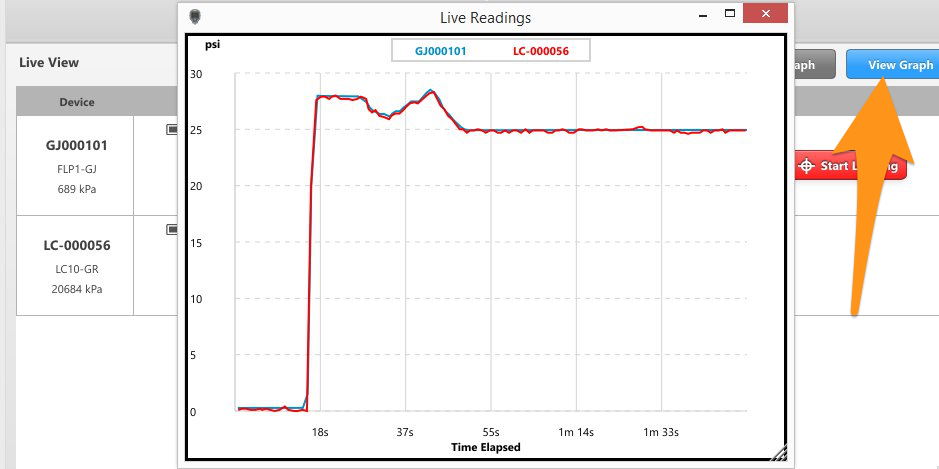

View live readings on a graph by selecting the View Graph button.
