This article applies to all Field Gauge and Process Meter models equipped with a W1 radio. All devices equipped with a W1 Radio have 16 channels (11 through 26). The factory default is channel 26.

If you want your to communicate wirelessly with another device, both your Field Gauge/Process Meter and the other device must be set to the same channel.

1

Press and hold the Menu/Up Arrow Button to access the Menu.

2

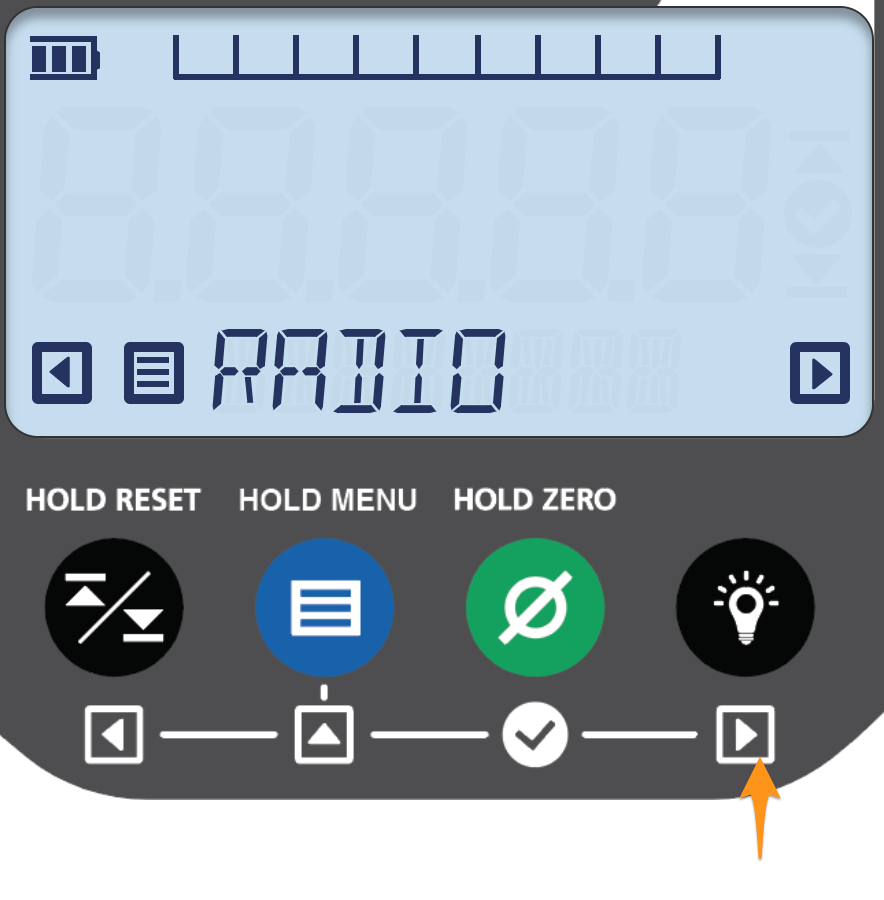

Press the Backlight/Right Arrow Button to scroll through the menu list until you see RADIO

3

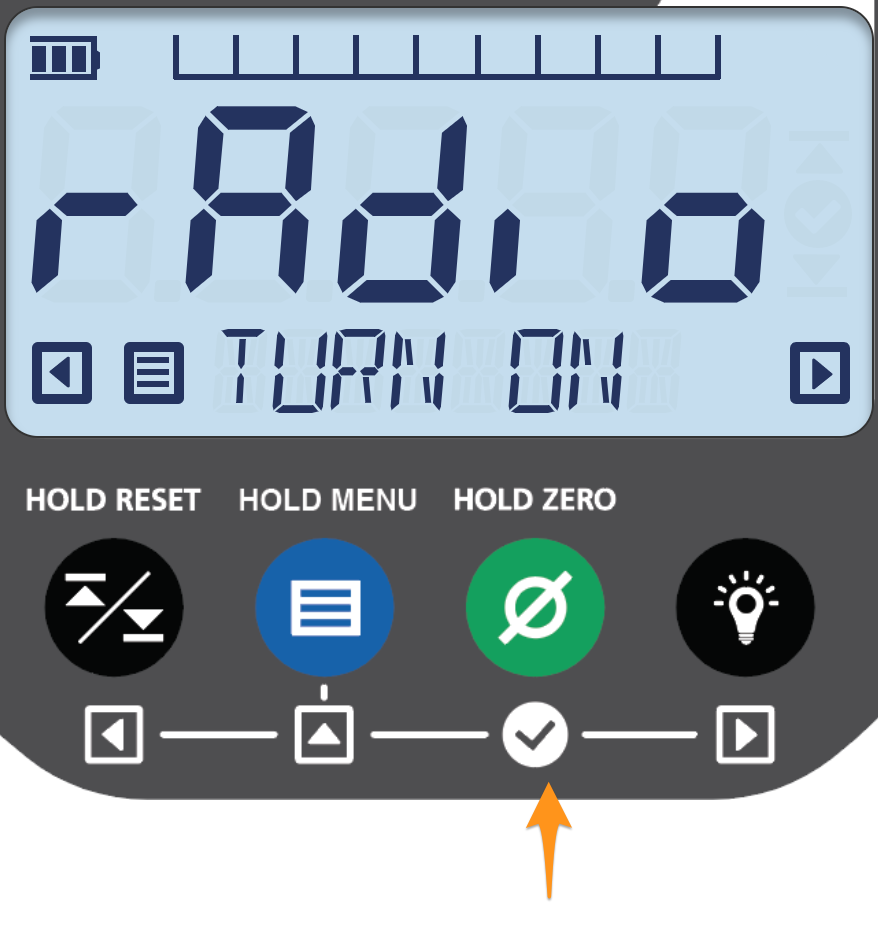

Press the Zero/Check Button to access the radio submenu.

4

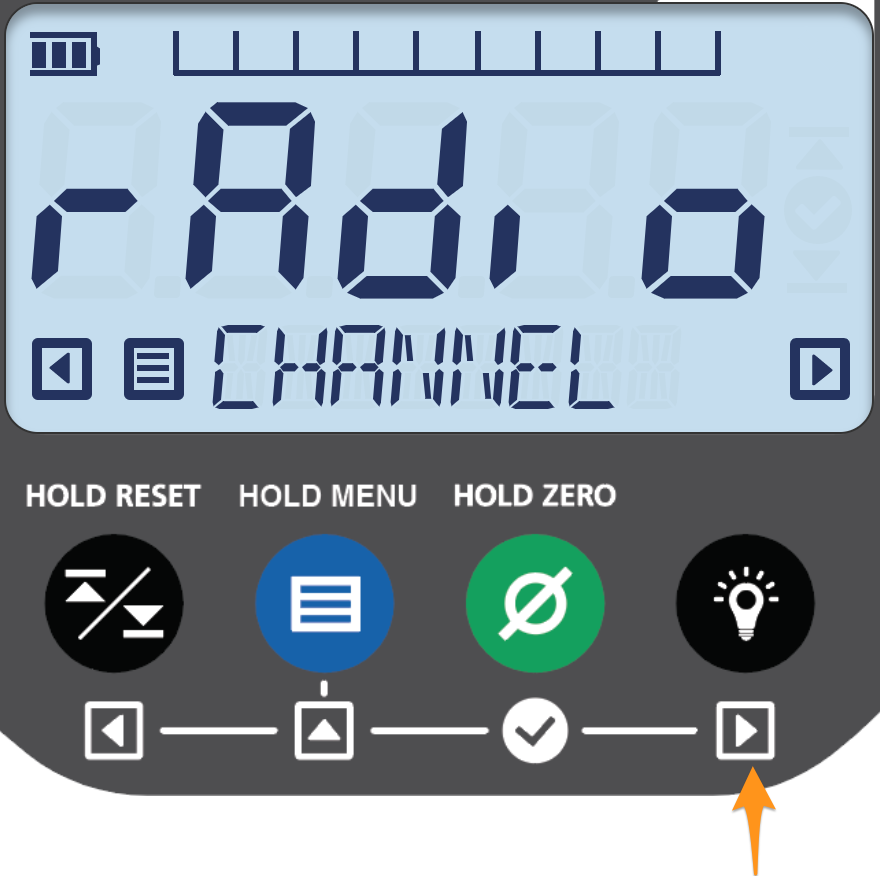

Press the Backlight/Right Arrow Button to scroll to CHANNEL

5

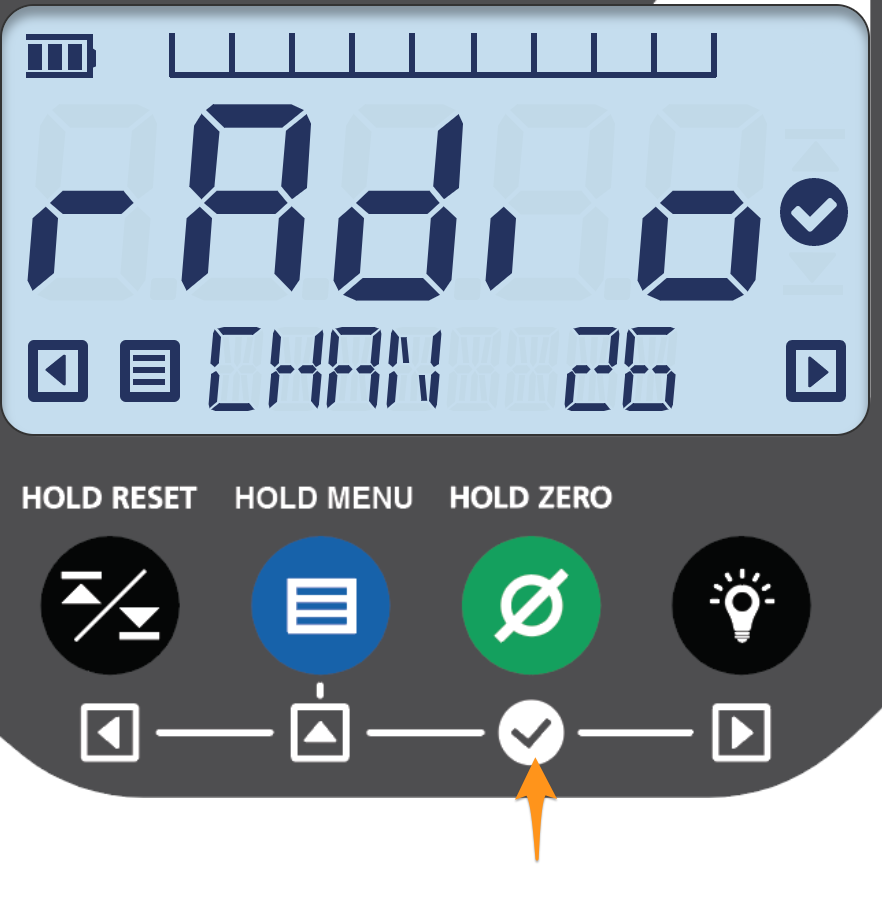

Press the Zero/Check Button to access the channel submenu.

The check mark in the upper right of the screen indicates the channel the Field Gauge/Process Meter is currently set to.

If you don't want to change the channel, press the Menu/Up Button twice to exit the menu.

6

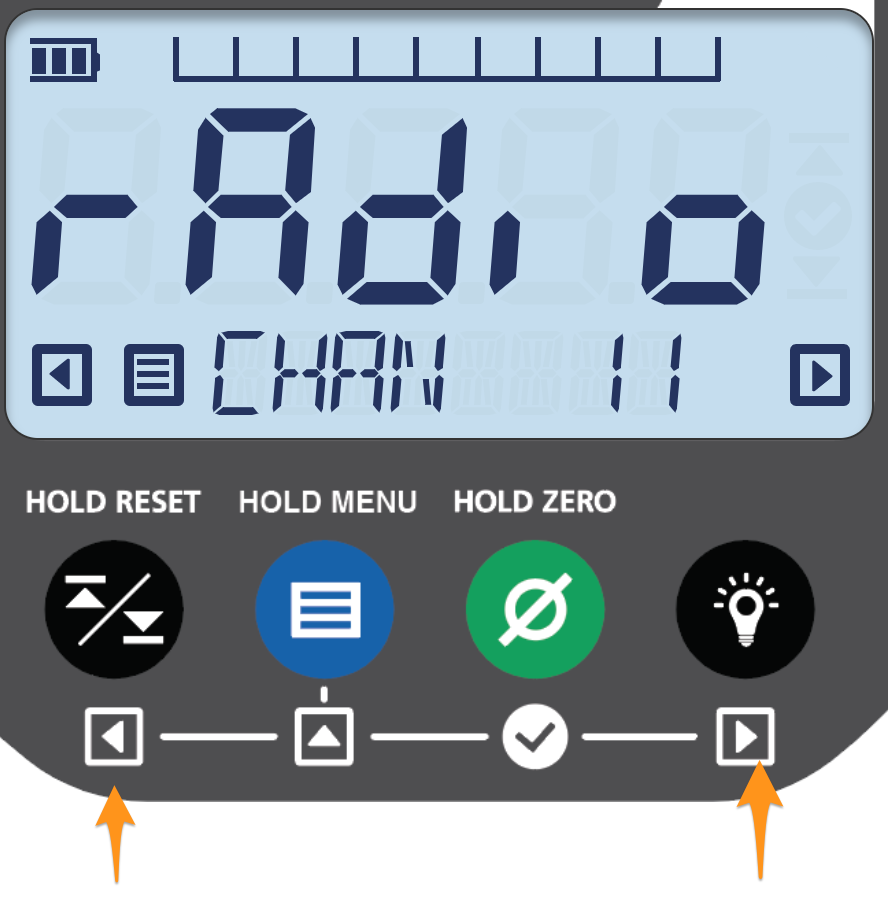

If you want to change to a different channel, press the Right or Left Buttons to scroll to the new channel.

7

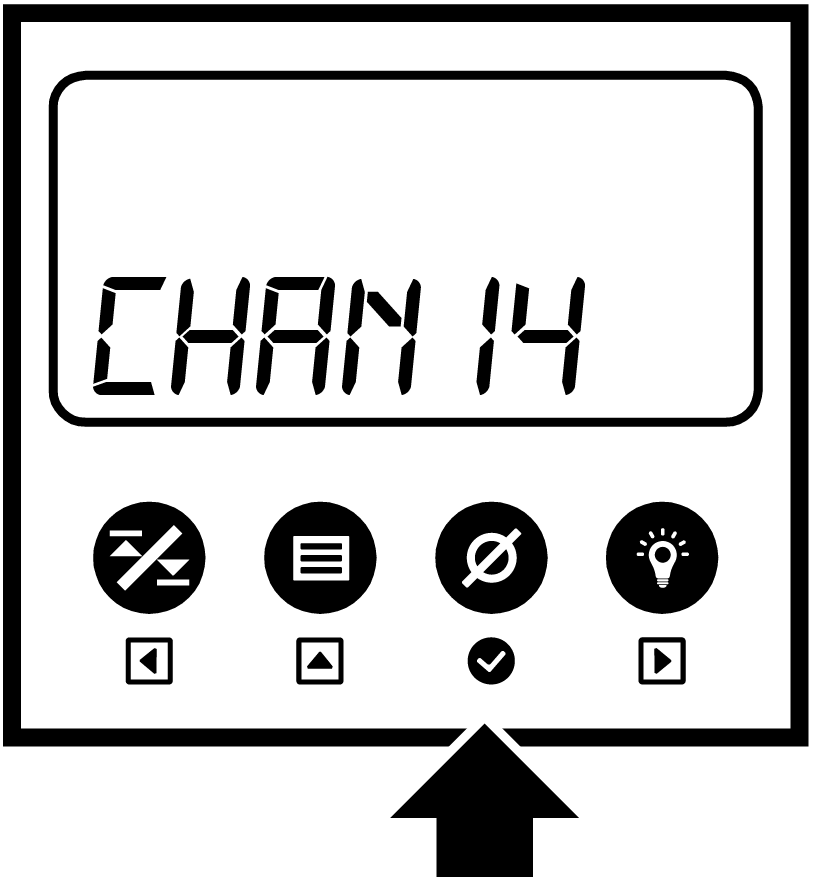

Press the Zero/Check Button to set the new channel.

8

Press the Menu/Up Button twice to exit out of the menu and return to the main pressure screen.
